In the LF range over which their response is
essentially omnidirectional (ka = 0.2 or lower), a doubling of closely
spaced driving units will result in an increase in acoustical output of 3 dB
for a fixed input power reference level [39, 48, 52, 53]. The progression in
efficiency increase is shown in Fig. 9 for one, two, and four LF transducers,
respectively.
Thus, by Equation 1 [Rendimento= [ρ0(Bl)2
SD2 /RE]/(2pc
Mms2) ], the efficiency will have doubled. For the case where the two drivers
are wired in series, the analysis goes as follows: The new driver has twice the
cone area, twice the moving mass, four times the (Bl)2 product, and twice the value of RE. Again,
by Equation 1, there will be a doubling of efficiency.
Mutual coupling often appears to give something for
nothing, but there are clear limits to its effectiveness.
With each doubling of cone area, the ka = 0.2
upper response frequency corner moves downward approximately by a factor of
0.7, since this is the reciprocal of the value by which the effective cone
radius has increased. As the process of adding drivers is continued, in the
limit it can be shown that the efficiency of an ensemble of direct radiators
cannot exceed a value of 25% [38]. Because of these constraints, the
approximation of power doubling for each twotimes increase in drivers is
accurate only at very low frequencies and only if the efficiency values are low
to begin with.

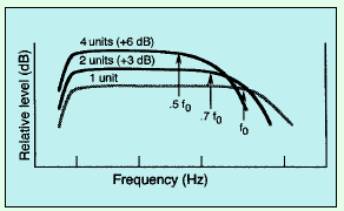

Fig. 9. Illustration of mutual
coupling of LF drivers.
